Taper Roller Bearings

In stock•cod not available

Phone Number

08042756816

Please keep 0 before dialling the number.

Email Address jaivardhansaboo@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address Chabdi Bazar, Shradhanand Marg, Chabdi Bazar, Shardhanand Market

New Delhi, Delhi, India, 110006

Description

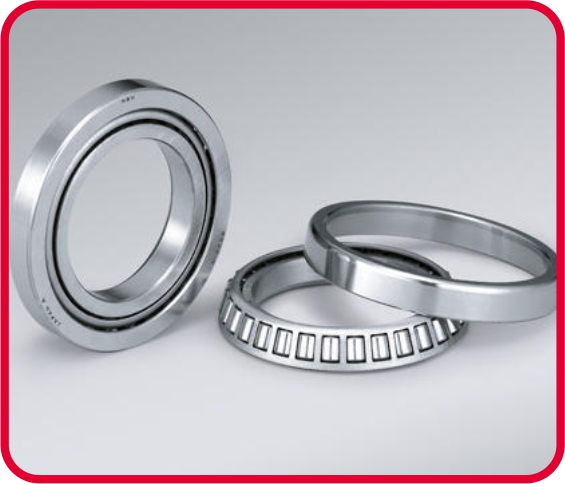

Bearings of this type use conical rollers guided by a back-face rib on the cone. These bearings are capable of taking high radial loads and axial loads in one direction. In the HR series, the rollers are increased in both size and number giving it an even higher load capacity. They are generally mounted in pairs in a manner similar to single-row angular contact ball bearings. In this case, the proper internal clearance can be obtained by adjusting the axial distance between the cones or cups of the two opposed bearings.

Keywords

Other Products

view all

NSK

7209CTYNDULP4

The NSK 7209CTYNDULP4 is a high-precision, single-row angular contact ball bearing supplied as a universally ground duplex set (DU). Technical Specifications & Dimensions • Bore Diameter (d): 45 mm • Outside Diameter (D): 85 mm • Width (B): 19 mm per bearing • Contact Angle (C): 15° • Cage Type (TYN): Ball-guided polyamide/resin cage designed for lower friction and reduced noise. • Preload / Arrangement (DU / L): Universally ground duplex pair with a light preload. • Accuracy Class (P4): ISO Tolerance Class 4 (equivalent to ABEC 7), offering high running and dimensional precision. • Dynamic Load Rating (Cr): 51.5 kN • Static Load Rating (C0r): 28.8 kN • Limiting Speeds: 17,700 rpm (grease) / 22,000–27,000 rpm (oil/oil-air) • Weight / Mass: ~0.406 kg per bearing Commonly used in high-speed applications like CNC machine tool spindles and precision machinery.
