Description

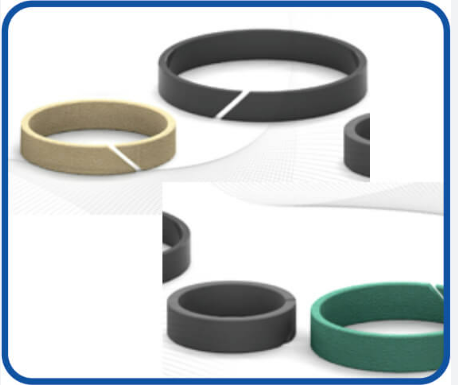

Guiding Elements Guiding Elements are important components used in hydraulic and pneumatic cylinders to guide the piston and rod during movement. These elements help prevent metal-to-metal contact between moving parts, reduce friction, absorb side loads, and improve the overall efficiency and life of sealing systems. Manufactured with precision and high-quality materials, guiding elements ensure smooth operation and reliable performance in demanding industrial applications. Rod Guide Ring Rod Guide Rings are designed to guide the piston rod inside the cylinder and absorb radial forces generated during operation. These guide rings help maintain proper alignment and protect sealing components from excessive wear. Features Prevents metal-to-metal contact High load-bearing capacity Excellent wear resistance Low friction operation Improves seal life and cylinder performance Applications Hydraulic cylinders Pneumatic cylinders Construction machinery Industrial automation systems Heavy engineering equipment Piston Guide Ring Piston Guide Rings are used to guide the piston within the cylinder bore and support side loads during reciprocating movement. These rings ensure smooth piston movement while minimizing wear and extending equipment life. Features High dimensional stability Excellent abrasion resistance Reduces operational friction Suitable for high-pressure applications Long service life Applications Hydraulic systems Pneumatic equipment Injection molding machines Material handling equipment Industrial machinery Available Materials Guiding elements are available in different material grades depending on application requirements, including: Phenolic Resin Fabric PTFE (Teflon) Nylon Polyacetal Bronze-filled PTFE Polyester Resin Materials These guiding elements are engineered for durability, precision alignment, and efficient operation in a wide range of hydraulic and pneumatic systems.
