HIWIN Linear Guideway – Precision Linear Motion Solution
Manish Bearing Enterprises is a trusted supplier of HIWIN Linear Guideways, HIWIN Linear Rails and Linear Guide Blocks for industrial machinery, automation systems, CNC machines and precision motion applications. HIWIN linear guideways use recirculating rolling elements between a profiled rail and bearing block to provide smooth, accurate and low-friction linear movement.
Whether you are looking for a HIWIN linear guideway for CNC machines, HIWIN HG series, EG series, MG miniature guideways, RG roller guideways or replacement linear guide blocks, Manish Bearing Enterprises can help you select the appropriate size and configuration according to your application.
What is a HIWIN Linear Guideway?

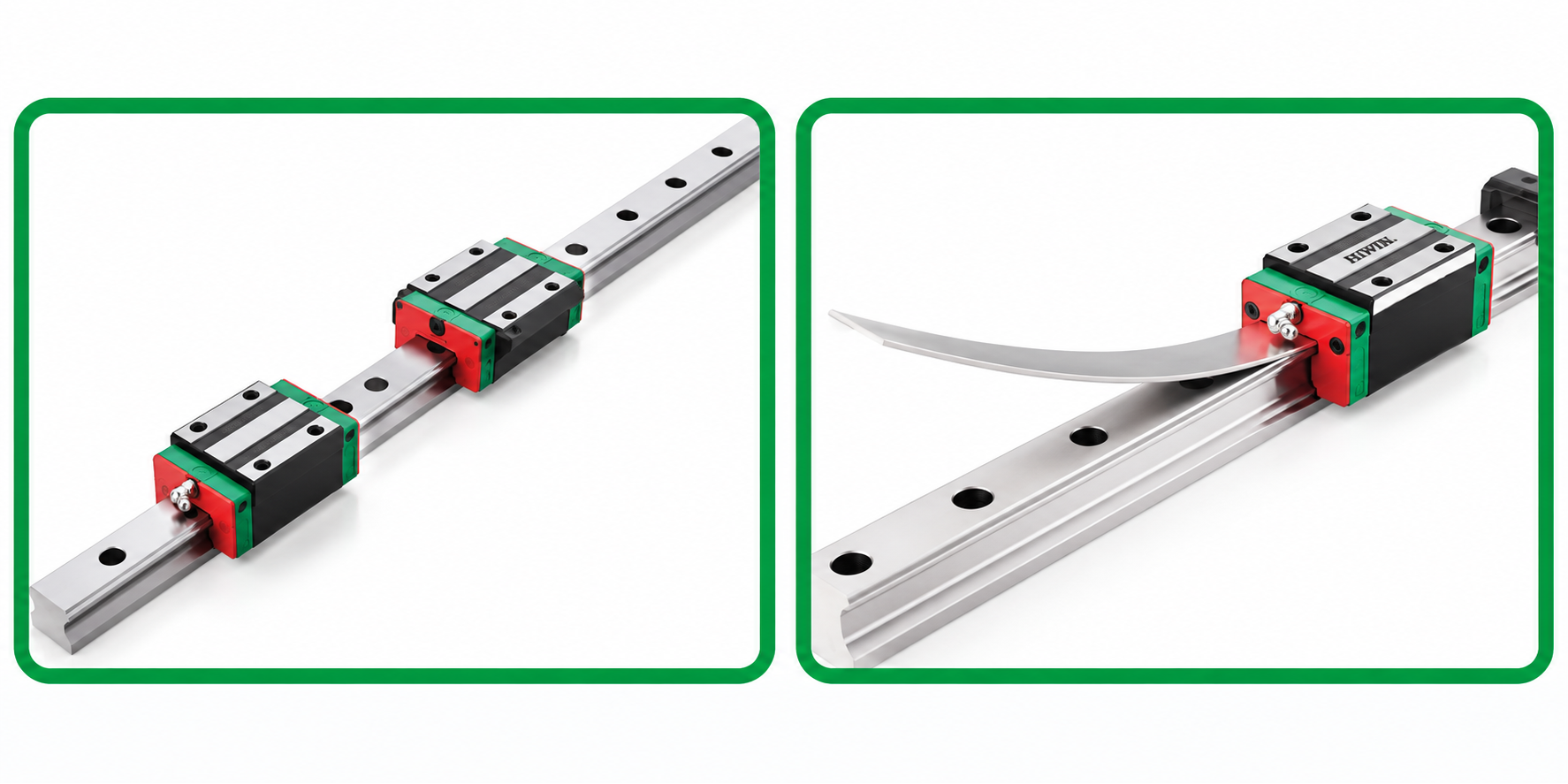

A HIWIN Linear Guideway is a precision mechanical component designed to provide controlled linear movement between a stationary rail and a moving block. Recirculating balls or rollers inside the guide block reduce friction and allow smooth movement with high positional accuracy.
Compared with conventional sliding guides, HIWIN states that its linear guideways can have a friction coefficient of approximately 1/50 of a traditional slide, helping achieve efficient and accurate linear motion.
A typical linear guideway system consists of:
- Profile Rail / Linear Rail
- Linear Guide Block / Bearing Block
- Recirculating balls or rollers
- End caps and seals
- Lubrication system
- Optional dust-protection accessories
HIWIN Linear Guideway Series
HIWIN offers different guideway series for different load, rigidity, space and accuracy requirements.
1. HIWIN HG Series – Heavy Load Linear Guideway
The HIWIN HG Series is designed for applications requiring high load capacity, rigidity and accurate linear movement. It uses a four-row circular-arc groove design and provides load ratings in multiple directions.
Common applications:
- CNC machining centres
- Milling machines
- Drilling machines
- Grinding machines
- Lathes
- EDM machines
- Woodworking machinery
- Industrial automation
The HG series is available in multiple sizes and block configurations.
2. HIWIN EG Series – Low Profile Linear Guideway
The EG Series is a low-profile linear guideway designed where machine space is limited while maintaining high load capacity and rigidity.
It is suitable for:
- Automation equipment
- CNC machinery
- Semiconductor equipment
- Compact machines
- Pick-and-place systems
- High-speed applications
HIWIN specifies the EG series with a basic dynamic load range of approximately 5.35–33.35 kN, depending on the configuration.
3. HIWIN MG Series – Miniature Linear Guideway
The MG Series is designed for compact equipment requiring precise linear movement in a small footprint.
It is available in MGN narrow-block and MGW wide-block configurations and uses stainless-steel construction for corrosion resistance.
Typical applications include:
- Small automation equipment
- Laboratory equipment
- Electronic machinery
- Compact CNC equipment
- Precision instruments
- Small positioning systems
4. HIWIN RG Series – Roller Type Linear Guideway
The HIWIN RG Series uses rollers rather than conventional steel balls. This provides high rigidity and high load capacity and makes the series suitable for demanding precision-machining applications.
The RG Series has a 45-degree contact angle and is designed for applications requiring high rigidity and load capacity.
5. HIWIN WE Series – Wide Rail Linear Guideway
The WE Series features a wide rail design that provides high moment load capacity and rigidity. Its design is useful where installation space is restricted or where a single rail and high moment resistance are required.
6. HIWIN QH / QE / QW Series
HIWIN also offers QH, QE and QW linear guideways with SynchMotion technology, designed to provide smooth movement, reduced noise, improved lubrication performance and longer running life.
7. HIWIN CG Series
The CG Series is designed for applications requiring improved moment load capacity. HIWIN states that its moment load capacity can be up to 50% higher than standard HG assemblies, depending on configuration.
HIWIN Linear Guideway Specifications
Specifications vary according to the series, rail size and block configuration. Important parameters to check before purchasing include:
| Specification | What to Check |
|---|---|
| Guideway Series | HG, EG, MG, RG, WE, QH, QE, QW, CG etc. |
| Rail Size | 15, 20, 25, 30, 35, 45 and other sizes |
| Rail Length | According to machine travel |
| Block Type | Square, flange, narrow, wide, etc. |
| Load Capacity | Dynamic and static load ratings |
| Accuracy Class | Select according to application |
| Preload | Depends on rigidity and precision requirement |
| Mounting | Top or bottom mounting configuration |
| Material | Depending on series and application |
| Lubrication | Grease/oil and lubrication arrangement |
| Sealing | Standard or additional dust protection |
HIWIN's product information provides detailed dimensions, load ratings and technical specifications for individual rails and blocks, so the exact model should be selected based on the machine design rather than simply the rail size.
Popular HIWIN Linear Guideway Models
Customers commonly search for specific HIWIN model families such as:
- HGH15CA
- HGH20CA
- HGH25CA
- HGH30CA
- HGH35CA
- HGH45CA
- HGW Series
- EGH Series
- EGW Series
- MGN Series
- MGW Series
- RG Series
- WE Series
- QH Series
- QE Series
- QW Series
- CG Series
Exact availability and specifications should always be confirmed from the required HIWIN part number and machine application. HIWIN's technical catalogue covers the various linear guideway series and selection principles.
Applications of HIWIN Linear Guideways
HIWIN linear guideways are widely used where smooth, accurate and repeatable linear motion is required.
Industrial Applications
- CNC machines
- VMC machines
- HMC machines
- Milling machines
- Grinding machines
- Drilling machines
- Turning machines
- EDM machines
- Laser cutting machines
- Automation machinery
- Robotic systems
- Packaging machinery
- Printing machinery
- Semiconductor equipment
- Medical equipment
- Inspection and measuring machines
- Pick-and-place machines
- Woodworking machinery
HIWIN identifies applications across machine tools, printing and packaging, laser machining, medical technology and other precision-motion applications.
How to Choose the Right HIWIN Linear Guideway?
Choosing the correct linear guideway is important for machine performance and service life.
Consider:
1. Load
Determine the weight and forces acting on the moving assembly.
2. Travel Length
Select a suitable rail length according to the required machine stroke.
3. Speed and Acceleration
High-speed applications may require an appropriate guideway series and lubrication arrangement.
4. Required Accuracy
Select the appropriate accuracy class depending on machining or positioning requirements.
5. Rigidity
Heavy-duty machining applications may require a higher-rigidity guideway such as an HG or RG configuration.
6. Available Space
For compact machines, low-profile EG or miniature MG configurations may be more appropriate.
7. Environmental Conditions
Dust, chips, moisture and other contaminants may require suitable seals or dust-protection accessories. HIWIN offers dust-proof options for environments with higher debris exposure.
8. Rail + Block Compatibility
The guide block and profile rail must be correctly matched according to the manufacturer's specifications.
Why Choose Manish Bearing Enterprises for HIWIN Linear Guideways?
Manish Bearing Enterprises supplies linear motion and bearing-related products for industrial requirements, helping customers identify the appropriate product based on their machinery and application.
Customers can approach us for:
- HIWIN Linear Guideways
- HIWIN Linear Rails
- HIWIN Guide Blocks
- HIWIN HG Series
- HIWIN EG Series
- HIWIN MG Series
- HIWIN RG Series
- HIWIN WE Series
- Linear guideway replacement requirements
- CNC machine linear guideway requirements
- Industrial automation linear motion components
If you already have a HIWIN model number, photograph, rail size or old guide block, sharing those details can make product identification easier.
Frequently Asked Questions – HIWIN Linear Guideway
1. What is a HIWIN Linear Guideway?
A HIWIN Linear Guideway is a precision linear-motion component consisting primarily of a profiled rail and bearing block with recirculating rolling elements. It enables smooth and accurate linear movement.
2. What is the difference between a HIWIN linear rail and linear guideway?
A linear rail generally refers to the profile rail itself, while a linear guideway assembly normally includes the rail and one or more guide blocks.
3. Which HIWIN Linear Guideway is suitable for CNC machines?
The appropriate series depends on the machine's load, rigidity, speed, accuracy and mounting requirements. HG Series is commonly designed for heavy-load applications, while RG Series is intended for applications requiring high rigidity and roller-based load support.
4. What is HIWIN HGH20CA?
HGH20CA is a specific HIWIN HG Series guide block model. The exact rail and assembly configuration should be matched with the manufacturer's specifications before replacement.
5. What is the difference between HGH and HGW?
Both belong to the HIWIN HG family, but they represent different block configurations and dimensions. The correct choice depends on mounting arrangement, available space and machine design.
6. What is the HIWIN EG Series used for?
The EG Series is a low-profile linear guideway designed for applications where compact installation, load capacity and rigidity are important.
7. What is a HIWIN MGN linear guideway?
MGN is a miniature linear guideway configuration designed for compact precision-motion applications. HIWIN's MG family includes MGN narrow blocks and MGW wider blocks.
8. How do I identify my HIWIN linear guideway?
Check the marking on the guide block or rail and note the series, size and model number. A clear photograph of the block and rail can also help identify the configuration.
9. Can I replace only the HIWIN guide block?
Depending on the application and manufacturer's interchangeability requirements, a guide block may be replaced, but the rail and block combination must be correctly matched. Do not assume that every block of the same nominal size is interchangeable.
10. How often should HIWIN linear guideways be lubricated?
Lubrication requirements depend on the series, operating conditions, speed, load, environment and duty cycle. Follow the manufacturer's maintenance recommendations for the specific model. HIWIN also offers self-lubricating and lubrication-related options for selected applications.
11. Where can I buy HIWIN Linear Guideways in India?
For industrial requirements, customers can contact Manish Bearing Enterprises with the required HIWIN model number, size, rail length or machine details for product identification and quotation.
